WhatsApp usAt Fine Art Restoration Company, we often work on unusual and historically important objects, but this diorama restoration project stood out immediately. The piece was a large architectural model dating from 1956, created to represent South Essex Crematorium and its grounds. Over time, it had been forgotten and came close to being lost altogether.
When it was rediscovered, the base and display case had survived, but many of the buildings were detached, crushed or broken into pieces. What remained was fragile, dusty and incomplete, but still full of character, detail and local history.
A Civic Landmark in Miniature
This was far more than a standard model repair project. It was a carefully made mid-century architectural diorama, created not simply to represent a building – but to reflect a place of real civic and social importance.
In the 1950s, Essex was rapidly changing, becoming one of the first areas shaped by post-war expansion and the rise of London commuters. As new towns and suburban developments emerged, so too did the need for thoughtfully designed civic infrastructure. Crematoria like this were part of that shift: modern, planned spaces intended to serve growing populations with dignity and care.
The South Essex Crematorium was created at a pivotal moment in British social history. Changes in legislation, particularly the Cremation Act reforms of the early 1950s, gave local authorities greater power to build crematoria, responding to the needs of rapidly growing urban and suburban populations. Throughout the decade, many new sites were opened, forming part of a coordinated effort to modernise public services and meet changing attitudes towards memorial practices.
The model captures a distinct post-war vision of civic life. It shows the crematorium not merely as a place of function, but as a thoughtfully composed landscape of remembrance, shaped by the quiet confidence of 1950s modern architecture. Its promenades, open grounds and central water feature speak of an era that believed design could bring clarity and dignity to public space. In a place shaped by grief, this modern architectural language offered reassurance, transforming loss into a sense of order – creating an atmosphere of balance and reflection.
The diorama itself included the principal crematorium buildings, architectural walkways and surrounding landscape, all housed within a fitted display case whose lid still contained a blueprint of the original design. Together, these elements show that this was more than a display piece; it was a visual record of how the site was meant to be experienced by the community it served.
Its construction also made it especially vulnerable. Made largely from paper and cardboard, the model was far more fragile than many architectural maquettes. These materials are easily affected by dust, contamination damp and handling damage. As a result, the project required more than straightforward model repair. It called for careful conservation and sensitive reconstruction to preserve both the physical object and the civic story it represents.
Assessing the Damage

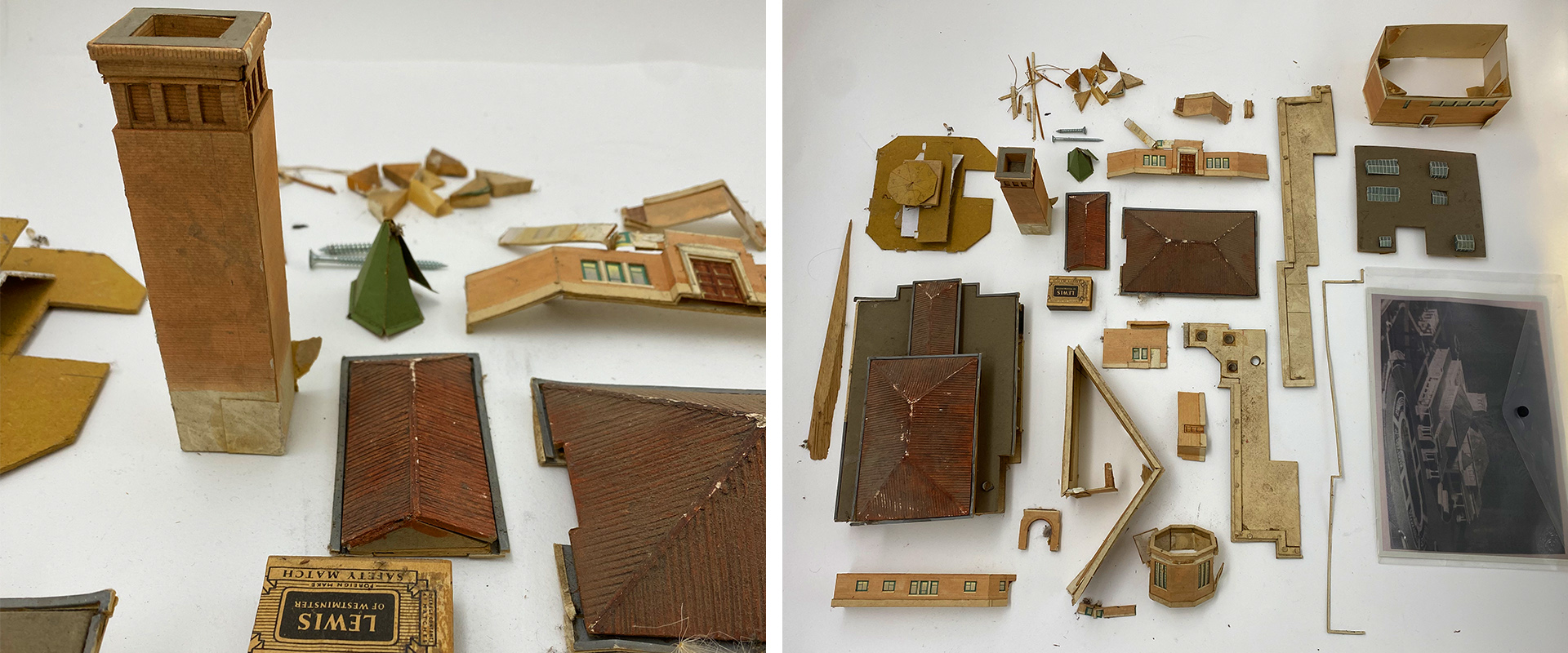

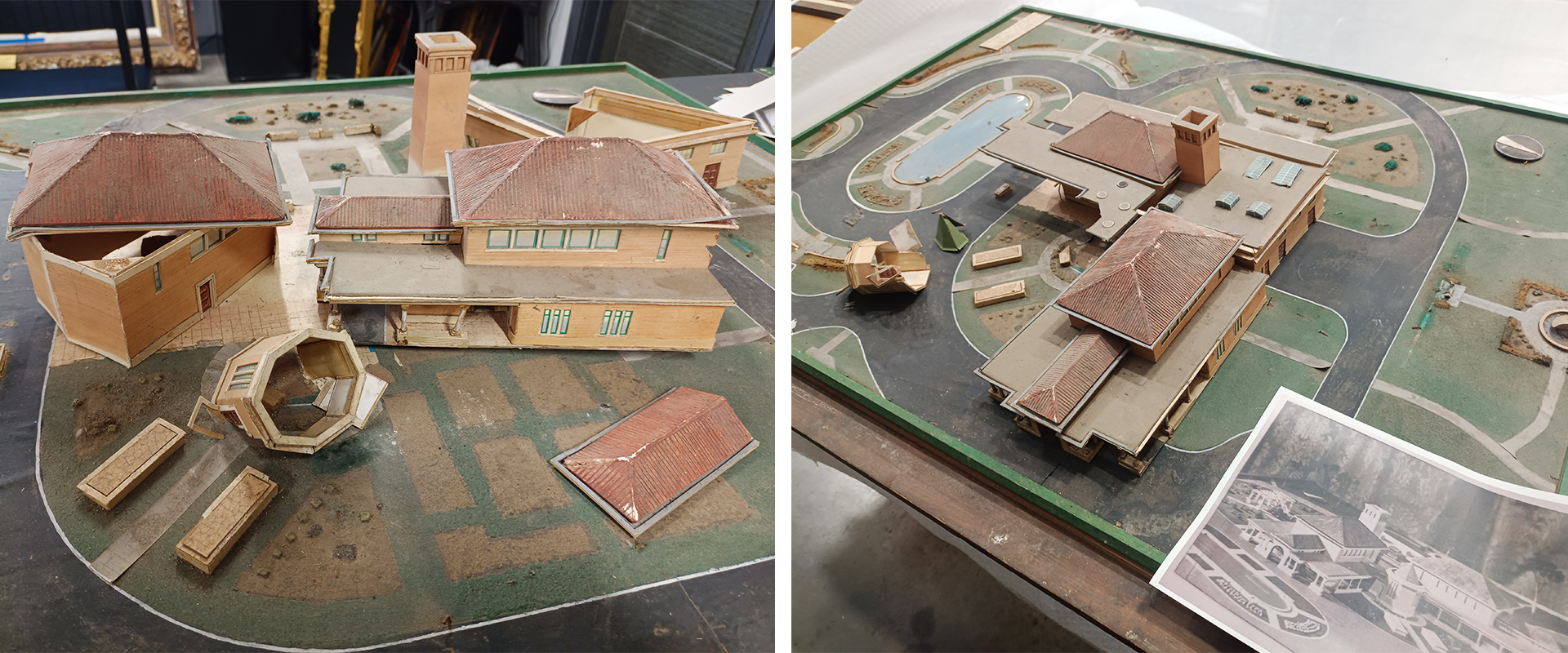

When the diorama arrived at our studio, it was clear that the piece would need extensive treatment. The surviving components included the three main buildings and a number of associated elements, but many parts had become detached and some sections were missing altogether.
The main issues included:
- Heavy dust and surface contamination across the model
- Warped, torn and peeling paper surfaces
- Crushed areas and misaligned walls
- Detached details and architectural elements
- Missing pillars, supports and sections of landscape
- Loss of most of the original trees and vegetation
Although it had first been thought that around 95% of the model survived, our close assessment showed that closer to 80% remained in restorable condition.

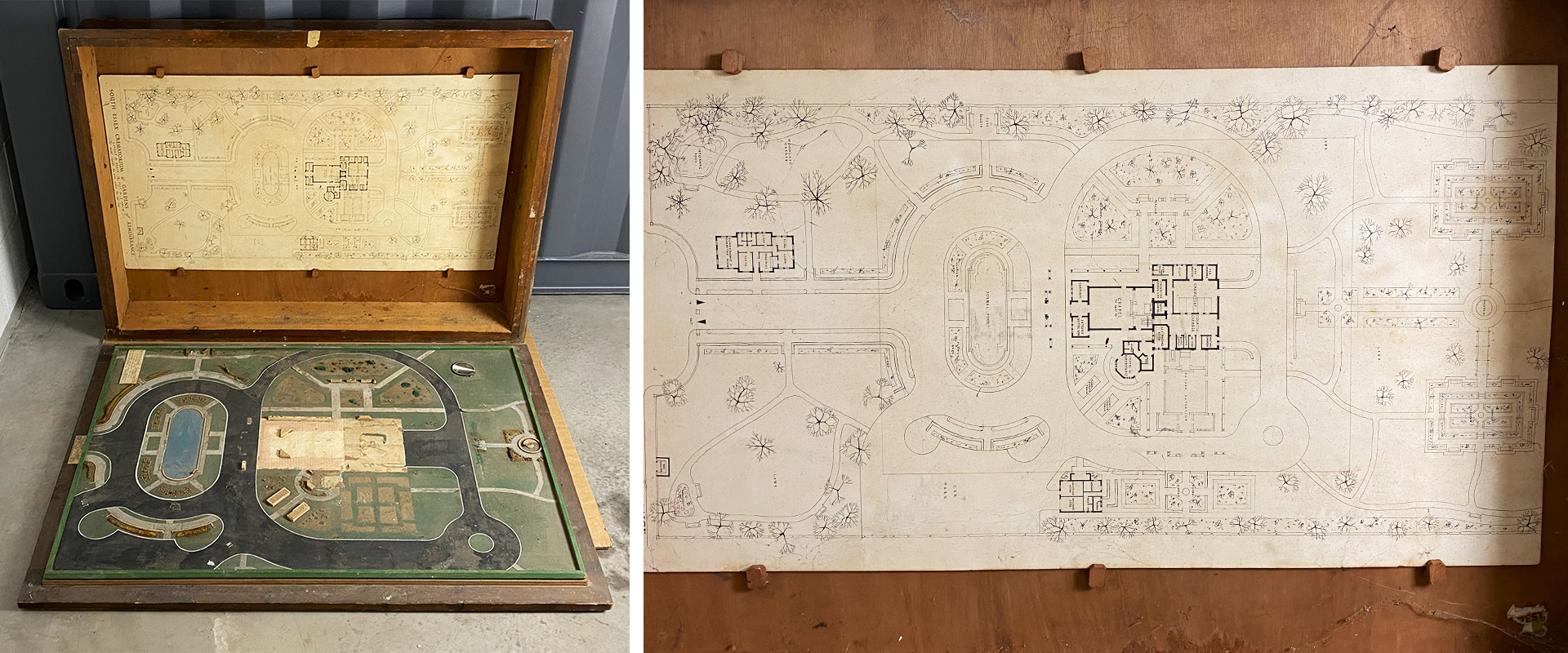

One of the most interesting parts of the project was the discovery of a printed blueprint inside the lid of the display case. This gave our conservators an invaluable point of reference when identifying the buildings and understanding how the original maker intended the whole site to be assembled. It helped to bridge the gap between our restoration approach and historic interpretation, allowing us to restore the diorama with much greater confidence and accuracy.
The Restoration
This was a highly detailed project that took around 100 hours of studio work. We began by photographing the diorama and documenting its condition so there would be a full visual record before treatment. From there, the restoration moved through several careful stages.

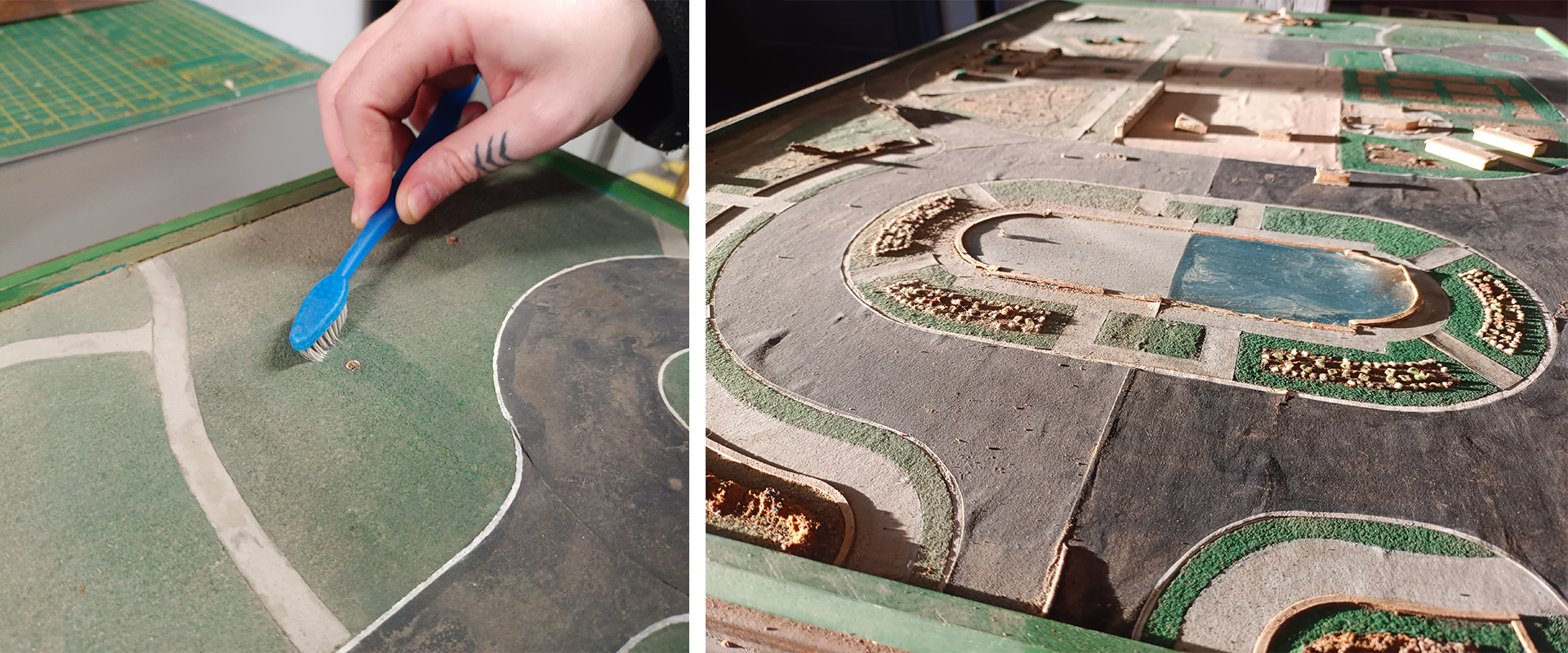

First came surface cleaning, which reduced years of dust and dirt without disturbing the delicate paper and card beneath. Fragile areas were then consolidated so that weakened components could be handled safely and reshaped where necessary.

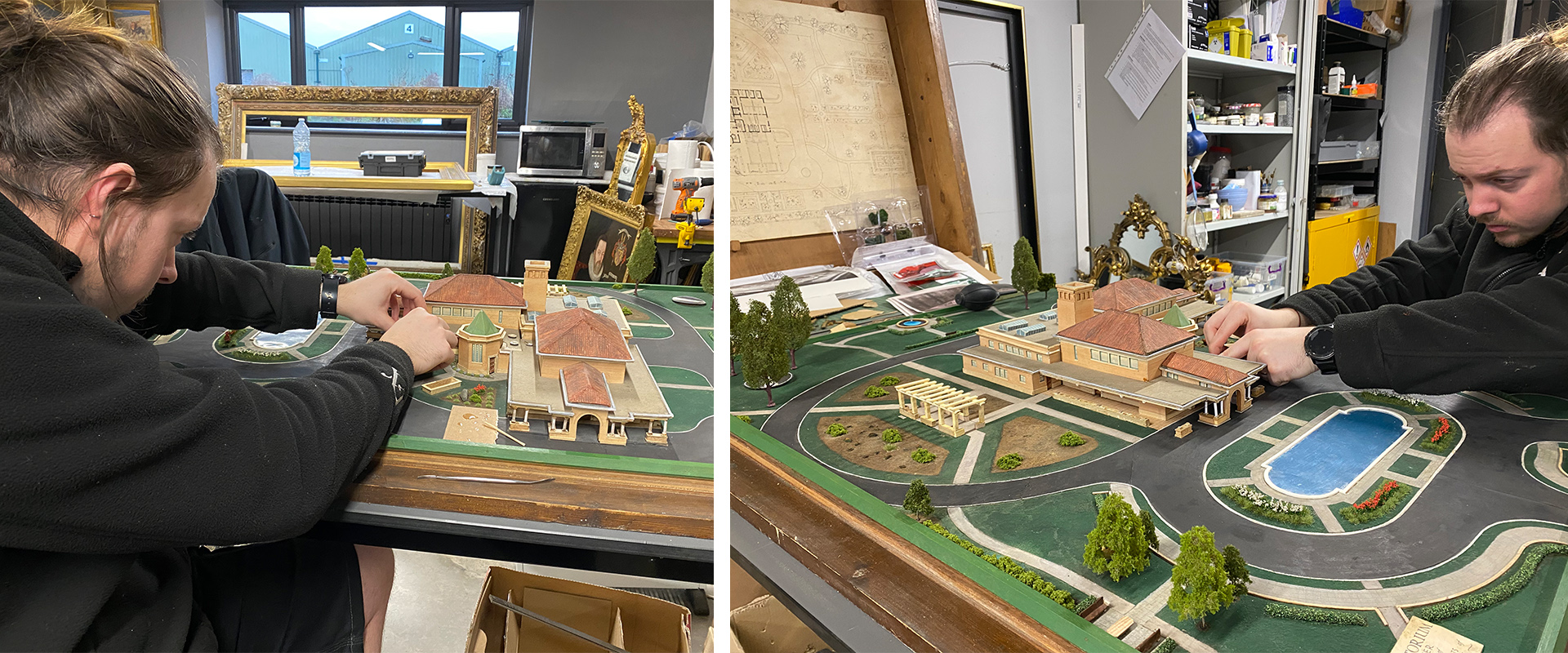

Once the structures had been stabilised, the reassembly process began. Buildings that had arrived in pieces were gradually reconstructed, including the Chapel of Remembrance, which had separated into multiple sections. The roof sections were gently re-formed, loose walls were secured and detached elements were put back into place.

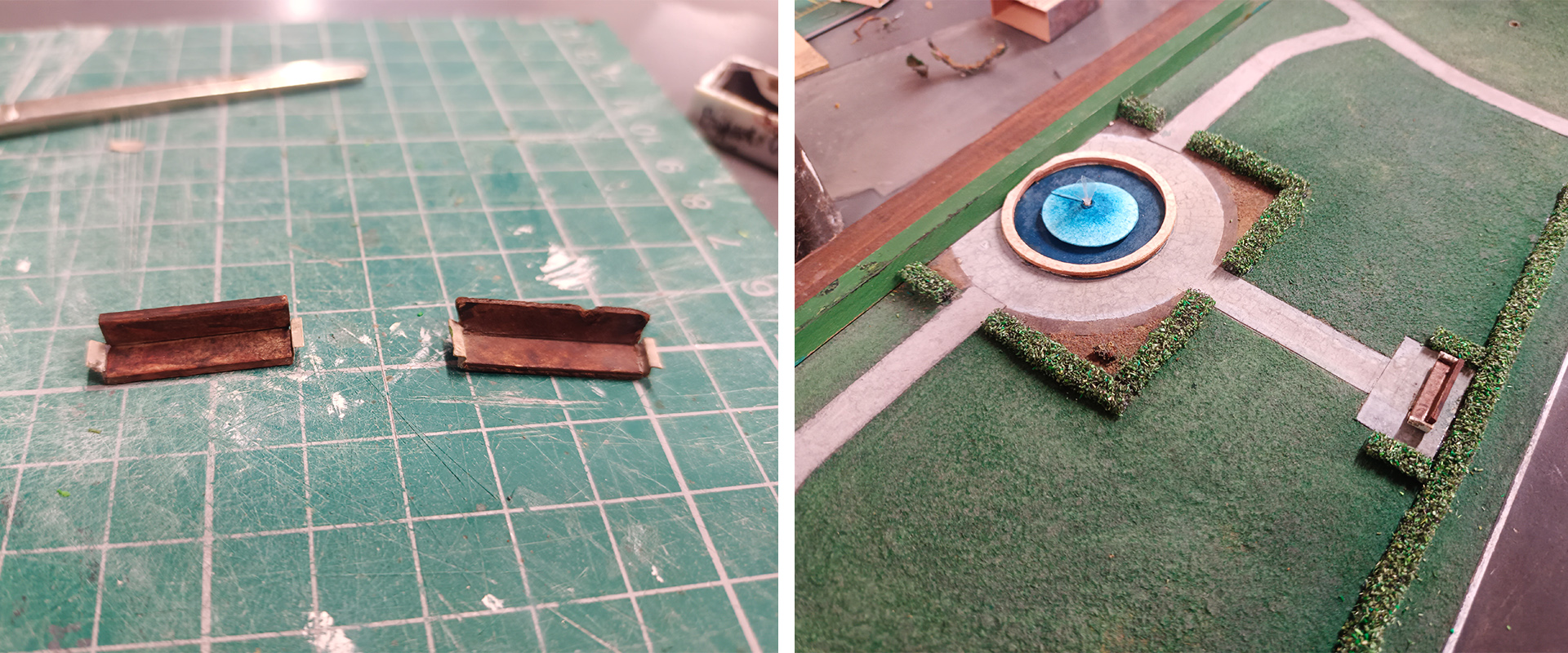

To restore the model as a coherent whole, missing architectural features also had to be recreated. This included structural supports, pillars for the promenades, and other losses that were visually important to the design.

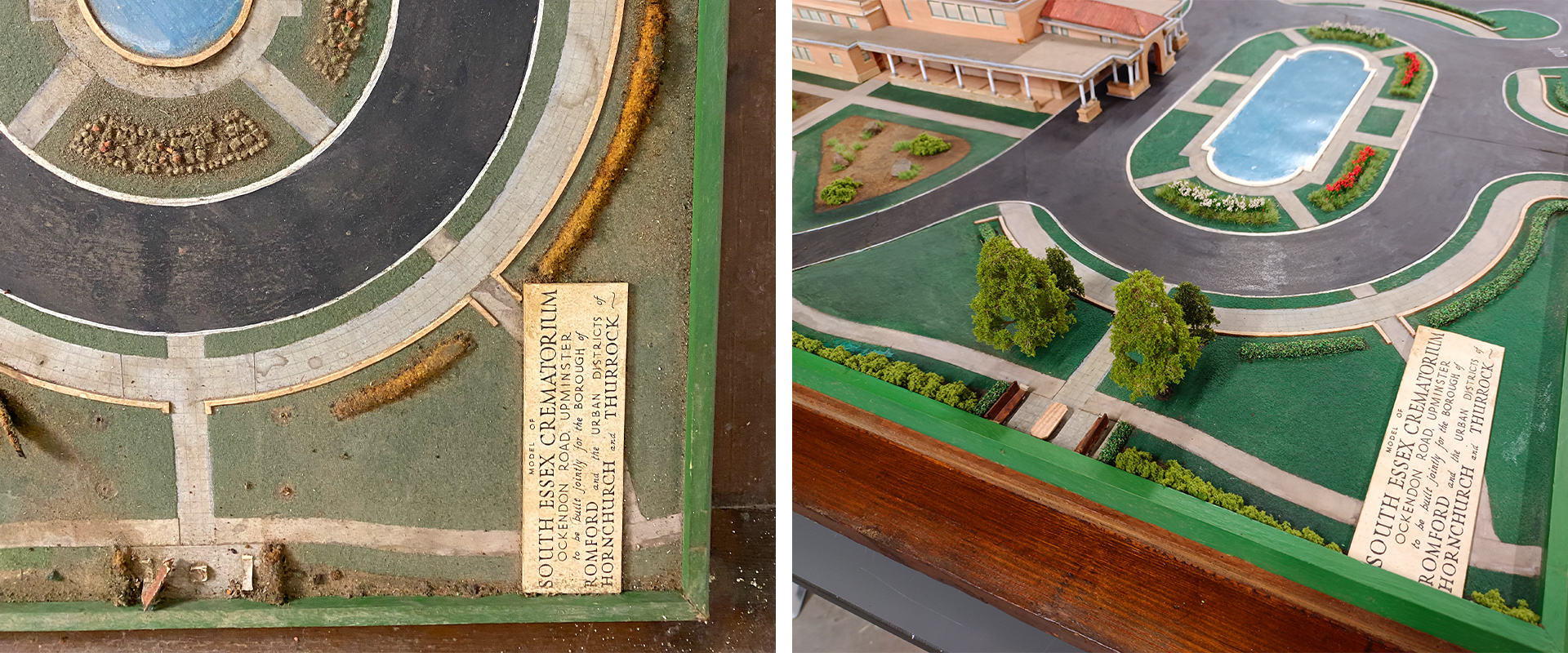

One of the most distinctive parts of the restoration was the recreation of the trees. None of the original trees had survived, yet they were an important part of the model’s character, softening the architecture and helping to express the carefully planned setting of the crematorium grounds. Rather than treating them as secondary decoration, our conservator Wik approached them as essential visual elements within the overall composition.
Using the surviving evidence in photographs and the wider logic of the landscape design, he recreated replacement trees that felt appropriate to the scale, period and tone of the diorama. Their reintroduction helped restore not just missing detail, but atmosphere – bringing back a sense of depth, balance and quiet formality to the site as it would originally have been presented.
The final stages involved toning and visual integration to reduce the impact of abrasions and repairs, followed by conservation of the wooden case so the model could safely return as both a display object and part of the council’s records.
The Results

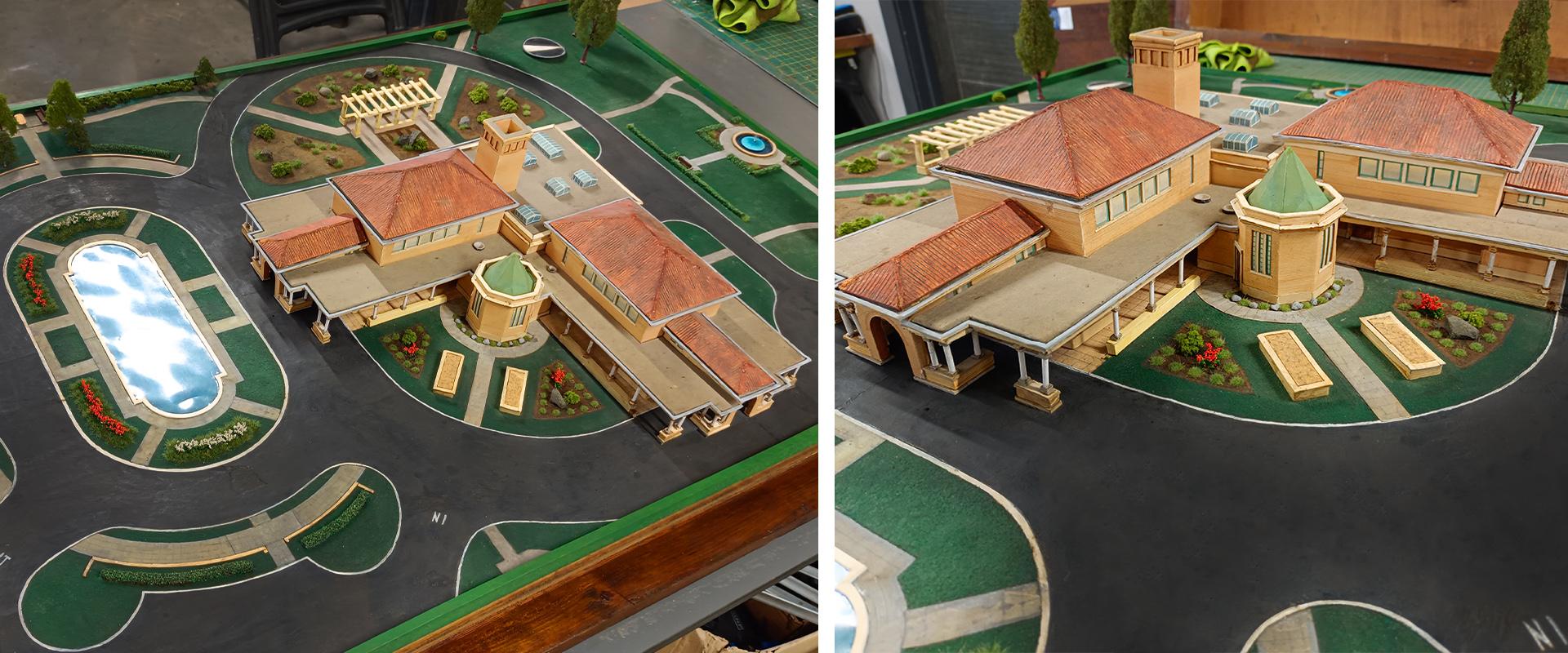

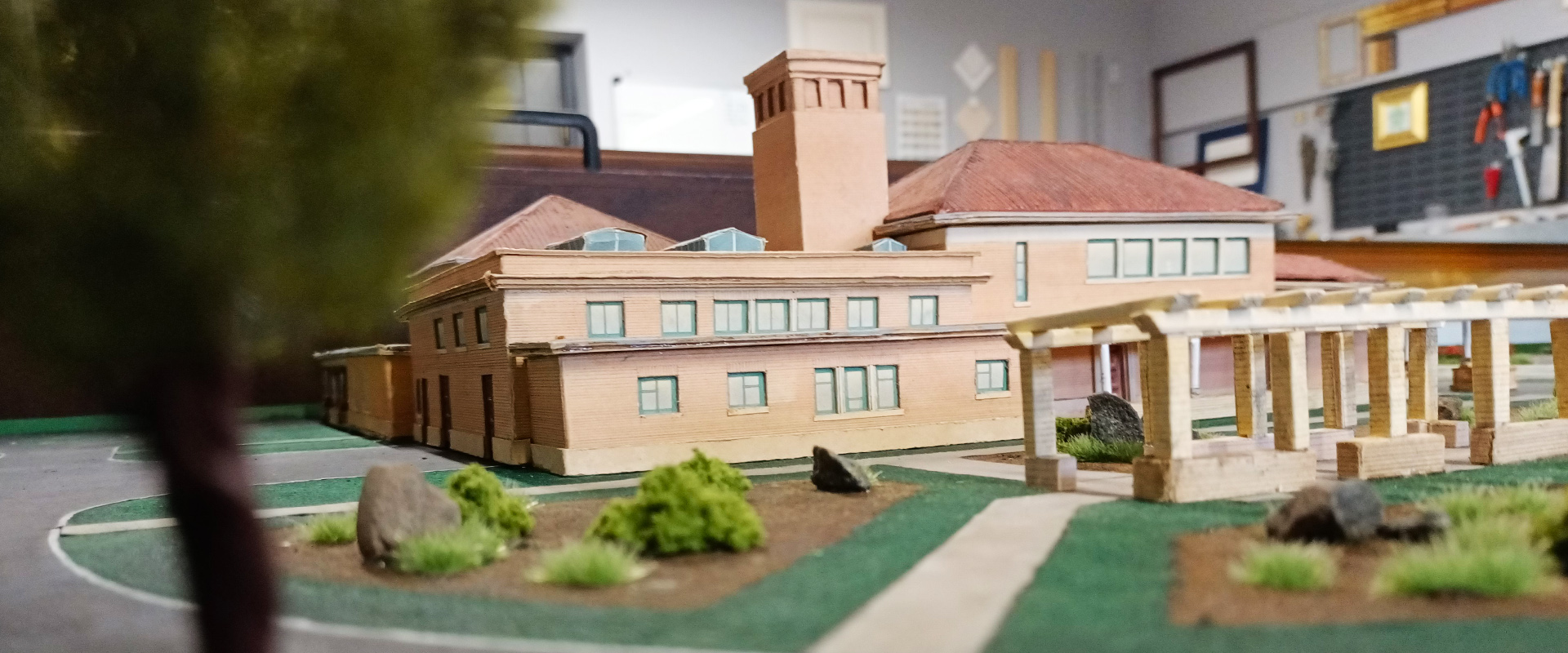

The transformation was dramatic. What arrived at our studio as a fragmented and highly vulnerable 1950s diorama has been carefully restored into a stable, legible and visually compelling architectural model. Through a campaign of specialist diorama restoration, a model that was once close to being discarded can now be preserved and confidently displayed as part of the council’s historical record.
This project highlights what an sensitive restoration approach can achieve. Dioramas are often fragile, especially those made from paper and card, and damage such as structural instability, missing elements and surface deterioration can make them seem beyond repair. However, with the right conservation approach, even complex and delicate models can be successfully revived.
The restoration of a diorama like this is not simply about repairing broken parts, but about preserving cultural and historical significance. In this case, the model represents more than a physical object, it is a historic record, a civic artefact and a rare insight into mid-century public design in a rapidly developed part of the United Kingdom.

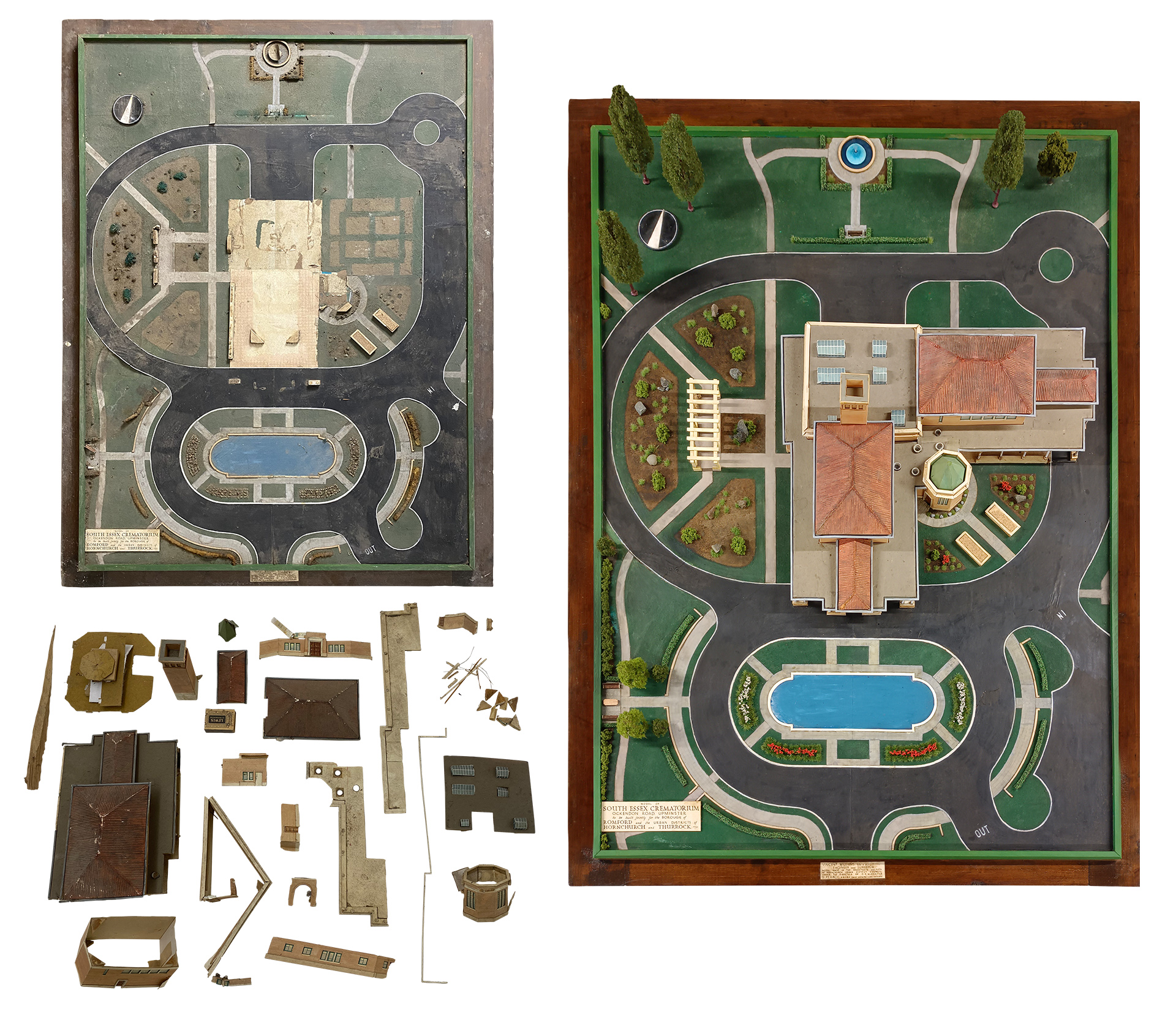

Sitting at the intersection of architectural model making, art conservation and expert reconstruction skills, a diorama and similar models require technical precision, material understanding and careful interpretation to ensure the restored piece remains faithful to its original purpose. Below is a bird’s eye view of the diorama before and after restoration by our conservator, Wiktor.
The South Essex diorama can now be re-established as a valuable heritage object. The project demonstrates how expert diorama and model repair services can bring damaged, incomplete or deteriorated models back to life, ensuring they can continue to inform, represent and be appreciated for generations to come.
